By: Joshua Platt, Jason Reaves and Jonathan McCay
QBot is a modular information stealer also known as Qakbot or Pinkslipbot. It has been active since around 2007. It has historically been known as a banking Trojan, meaning that it steals financial data from infected systems, and a loader using C2 (Command and Control) servers for payload targeting and execution.
On May 30th, 2024 Law Enforcement action[1] was taken against the Qbot operators in a coordinated effort to disrupt their activities. But like most things, while the actions taken did disrupt the activity, new signs are showing off a re-emergence of the operators.
But before we get to the interesting connection, research recently emerged from ZScaler on the addition of DNS tunneling to Zloader[2]. Their analysis highlighted a sample that upon further review contained some curious overlaps:
SHA256: 22c5858ff8c7815c34b4386c3b4c83f2b8bb23502d153f5d8fb9f55bd784e764
URL: vector123[.]xyz/PixelSignal.dll
IP: 80.66.89.100
The IP contained a more interesting delivery with two overlaps:
hxxp://146.19.128.138/pack.dat
hxxps://80.66.89.100/pack.dat
A pivot into relations shows a ZIP file named ‘pack.dat’:
c8bddb338404a289ac3a9d6781d139314fab575eb0e6dd3f8e8c37410987e4de
Taking a look inside the ZIP:
Date Time Attr Size Compressed Name
------------------- ----- ------------ ------------ ------------------------
2024-08-22 09:52:30 ..... 1096192 545458 winhttp64.dll
2023-11-01 17:17:28 ..... 6083072 1930818 libcrypto-3-x64.dll
2023-11-01 17:17:28 ..... 776704 272981 libssl-3-x64.dll
2024-11-13 03:28:05 ..... 4209176 1699649 OneDriveStandaloneUpdater.exe
2024-11-19 13:53:12 ..... 1366528 1366738 settingsbackup.dat
2024-11-13 12:01:31 ..... 1239040 283066 winhttp.dll
------------------- ----- ------------ ------------ ------------------------
2024-11-19 13:53:12 14770712 6098710 6 files
A few things can be quickly ascertained here; 3 of the files have newer dates than the others. Two of them have the same date while a .dat file has a later date. Assuming the DLL file we looked at earlier which is the ‘winhttp.dll’ file from this ZIP is loaded by the OneDriveStandaloneUpdater.exe then perhaps it will use the .dat file later. Also considering the PDB path of the DLL as something possibly intended to be side loaded.
OneDriveStandaloneUpdater.exe
F:\dbs\sh\odct\1021_111212\client\onedrive\Product\StandaloneUpdater\exe\obj\amd64\OneDriveStandaloneUpdater.pdb
This file will in fact load the winhttp.dll file:
Z:\j\projects\dll_side\dll_side\x64\DebugDllOnedriveUpdater\dll_side.pdb
This DLL will load and decrypt the previously seen .dat file before deploying some sort of test message:
The ‘Decode_and_load’ function will open and read in the .dat file:
Before RC4 decrypting it using a hardcoded 0x80 byte key:
Decrypting it ourselves shows it is a PE file:
>>> data = open('settingsbackup.dat', 'rb').read()
>>> from Crypto.Cipher import ARC4
>>> rc4 = ARC4.new(key)
>>> t = rc4.decrypt(data)
>>> t[:100]
b'MZ\x90\x00\x03\x00\x00\x00\x04\x00\x00\x00\xff\xff\x00\x00\xb8\x00\x00\x00\x00\x00\x00\x00@\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x18\x01\x00\x00\x0e\x1f\xba\x0e\x00\xb4\t\xcd!\xb8\x01L\xcd!This program cannot be'Decoded PE file:
Z:\j\projects\bc_ssl\x64\DebugDLL\bc_ssl_client.pdb
New BackConnect
The general overview of the startup of the BC module client thread is to hook low level createprocess and exitprocess functions before heading to the main functionality:

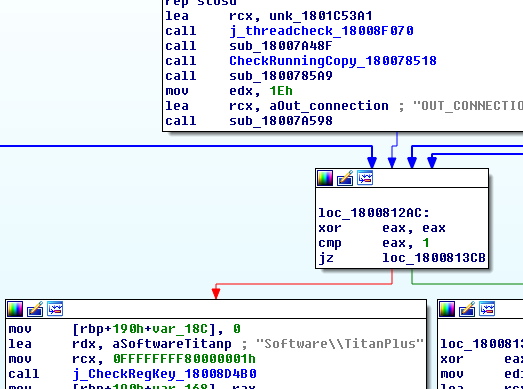

Inside the main working function the module will look for running copies of itself:

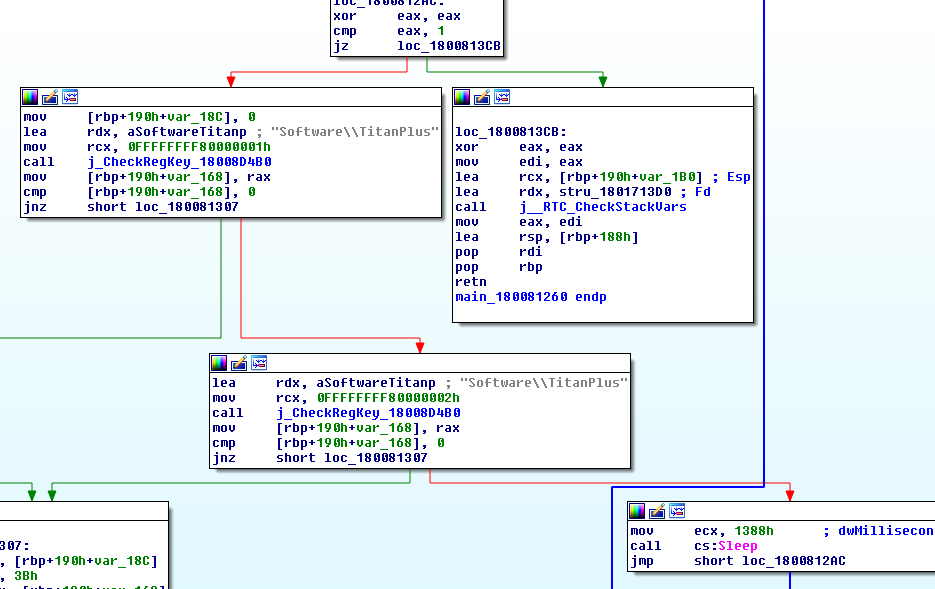

Then begins a sleep loop that will check for a hardcoded registry key of ‘Software\\TitanPlus’:
This value will be sent to a function labeled for parsing a string by a semicolon character:
Eventually these values will be passed off to the main worker function for ‘nattun_client_loop’:
When the client connects in it will send in information about the infected system:
While pivoting on the PDB information we managed to find a number of interesting files with references to Qbot.
4b4398f64e574cfdb8de05d388d97ed255e888045f0316808311f51f63212efb
Z:\j\projects\qbot4\tests\test_wmi\Release\x64\test_wmi.pdb
7215d9421e0a6d1a7cfde3f6d742670550fed009585ab35b53cbb845f63c5f74
Z:\j\projects\qbot4\Release\Win32\qd_x86.pdb
The references on this qd_x86 file:
hxxps://upd5[.pro/update/qd_x86.exe
This file looks like it might be some sort of a debugging tool:
Usage: %S <-t | -T | -s | -i | -c cmd | -h | -n base_random_name | -l seclog_file brn | -L seclog_blz_crypted_file dst_file passphrase> | -dm file | - du file>
-t send shutdown command to bot
-T stop bot, and clean config
-s run as test server
-c cmd send server command 'cmd'
-n [base_random_name] generate nick for local host or from base_random_name
-l seclog_file [base_random_name] decrypt seclog to stdout
-L seclog_file decrypt blzipped seclog to stdout
-i decrypt current config to stdout
-b check Update running
-dm file drop saved main dll to disk
-du file drop update dll to disk
-h print this help
A certain string related to a command can be traced back to the law enforcement takedown of Qbot.[3]
QPCMD_BOT_SHUTDOWN sent ok.
In addition to the new backConnect malware developed by Qbot operators, research has emerged tying zloader[4] activity to that of the BlackBasta ransomware operation. It is highly likely this new side loading backConnect malware has been or is going to be utilized to further ransomware attacks. We have released a yara rule in order to better identify the samples and help with detections.
IOCs
SHA256: 22c5858ff8c7815c34b4386c3b4c83f2b8bb23502d153f5d8fb9f55bd784e764
SHA256: 98d38282563c1fd09444724eacf5283626aeef36bcb3efa9d7a667db7314d81f
SHA256: c8bddb338404a289ac3a9d6781d139314fab575eb0e6dd3f8e8c37410987e4de
SHA256: bf861f5bd384707e23148716240822208ceeba50c132fb172b784a6575e5e555
SHA256: 9cdef45dc9f7c667a54effa9b8187ef128d64ea49c97bdae4e9567d866c63f5a
SHA256: 651e49a45b573bb39e21746cb99fcd5d17679e87e04201f4cc6ca10ff2d166e4
SHA256: 4cad17ef867f03081eb690b1c16d7f4d5c937c3f20726af0442d7274413e3620
SHA256: a197804c6ae915f59add068e862945b79916c92a508c0287a97db718e72280a3
vector123[.]xyz/PixelSignal.dll
upd5[.pro
146.19.128[.]138/pack.dat
80.66.89[.]100/pack.dat
80.66.89[.]100
146.19.128[.]138
Registry:
Software\\TitanPlus
YARA
rule new_bc
{
strings:
$a1 = {4a6869736864694932556873766f6339346b65696f6a6e376e7331396d30646f}
condition:
all of them
}
References
1: https://operation-endgame.com/
2: https://www.zscaler.com/blogs/security-research/inside-zloader-s-latest-trick-dns-tunneling
3: https://www.secureworks.com/blog/law-enforcement-takes-down-qakbot
