Let’s Learn: Introducing Latest TrickBot Point-of-Sale Finder Module

Malware Analysis
1

Goal: Analyze the latest TrickBot point-of-sale finder“psfin32” reconnaissance module hunting for point of sale related services, software, and machines in Lightweight Directory Access Protocol (LDAP)
Source:
Unpacked TrickBot psfin32 Module 32-Bit (x86) (MD5: 4fce2da754c9a1ac06ad11a46d215d23)
Outline

I. Background
II. Decoded TrickBot Point-of-Sale Finder “psfin32” Module 32-Bit (x86)
III. TrickBot Point-of-Sale Finder Module vs DomainGrabber Module: Code Analysis
IV.  TrickBot Point-of-Sale Finder Module LDAP Analysis
V.  TrickBot Point-of-Sale Finder Module POST Command
IV. Yara Signature
I. Background
This is not the first time the TrickBot development group leverages LDAP; they also developed a DomainGrabber module specifically to harvest sensitive domain controller information, as detailed earlier. The group behind the TrickBot malware development remains to be one of the most resourceful in the e-crime ecosystem continuously releasing various modules (for example. password grabber “pwgrab32Dll” on October 19, 2018). The module itself does not steal any point-of-sale data but rather used to profile corporate machines of interest with possible point-of-sale devices. This module arrives just in time for the holiday shopping season highlighting the group interest in exploring possible point-of-sale breaches. The question is: What point-of-sale malware would the group behind TrickBot deploy on identified machines of interest, and/or would they auction this access to another group? This question is yet to be answered.
II. Decoded TrickBot Point-of-Sale Finder “psfin32” Module 32-Bit (x86)
This tiny “psfin32” module DLL with the size of 18.13 KB (18568 bytes), compiled on Monday, November 5, 09:00:47 2018 UTC, is originally called “dll[.]dll.” The module itself consists of only 24 functions.
The decoded Trickbot “pfin32Dll” module contains the usual Trickbot export functions:
Control
FreeBuffer
Release
Start
III. TrickBot Point-of-Sale Finder Module vs DomainGrabber Module: Code Analysis

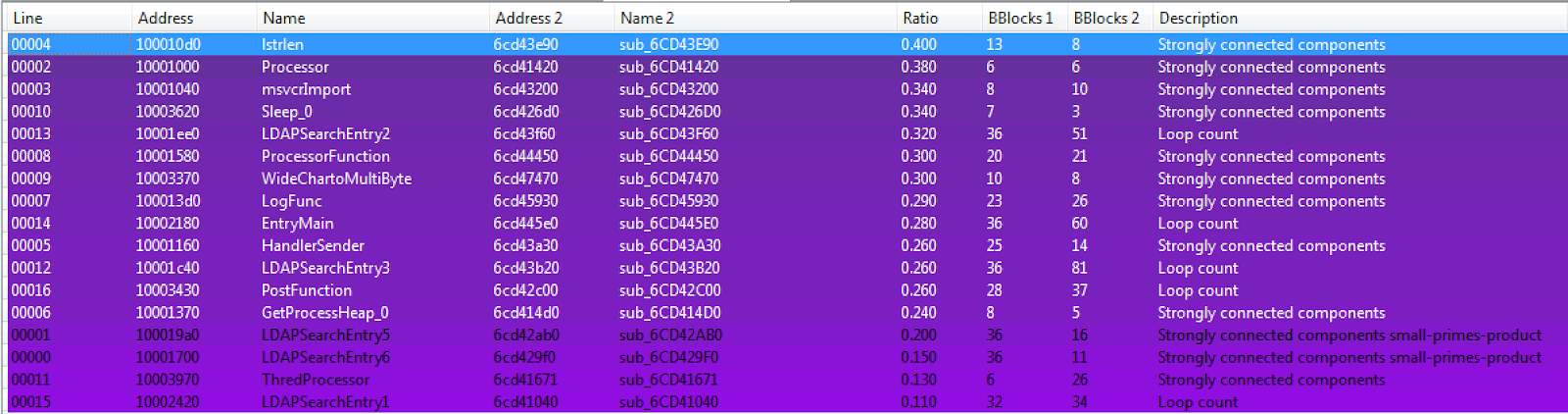

The latest module consists visually a lot of similarity to their previous DomainGrabber module. During pseudo source-code level analysis, it is revealed that the code contains 6 partial function matches (including perfect match and strongly connected components), 17 unreliable function matches (including same MD index and constants, strongly connected components, similar small pseudo-code, strongly connected components small-primes-product, and loop count). By and large, the pseudo source-code analysis reveals the new module heavily borrows from the earlier DomainGrabber code and was likely coded by the same developer(s).
IV.  TrickBot Point-of-Sale Finder Module LDAP Analysis
This Trickbot module was programmed leveraging Active Directory Service Interfaces (ADSI) APIs to search LDAP for objects possibly linked to point of sale related services, software, and machines. To learn more about specific access ADsOpenObject and IADsContainer  interface, please refer to the DomainGrabber post.
LDAP provider is used to access Active Directory Domain Services. The LDAP binding string takes the following form of “GC://” binding to the root of the namespace. “GC:” uses the LDAP provider to bind to the Global Catalog service to execute queries.
The module queries for DOMAIN Global Catalog the following accesses:
COMPUTERS
USERS
GROUPS
SITES
OUs
The point-of-sale key terms of interest are as follows:
POS
REG
CASH
LANE
STORE
RETAIL
BOH
ALOHA
MICROS
TERM

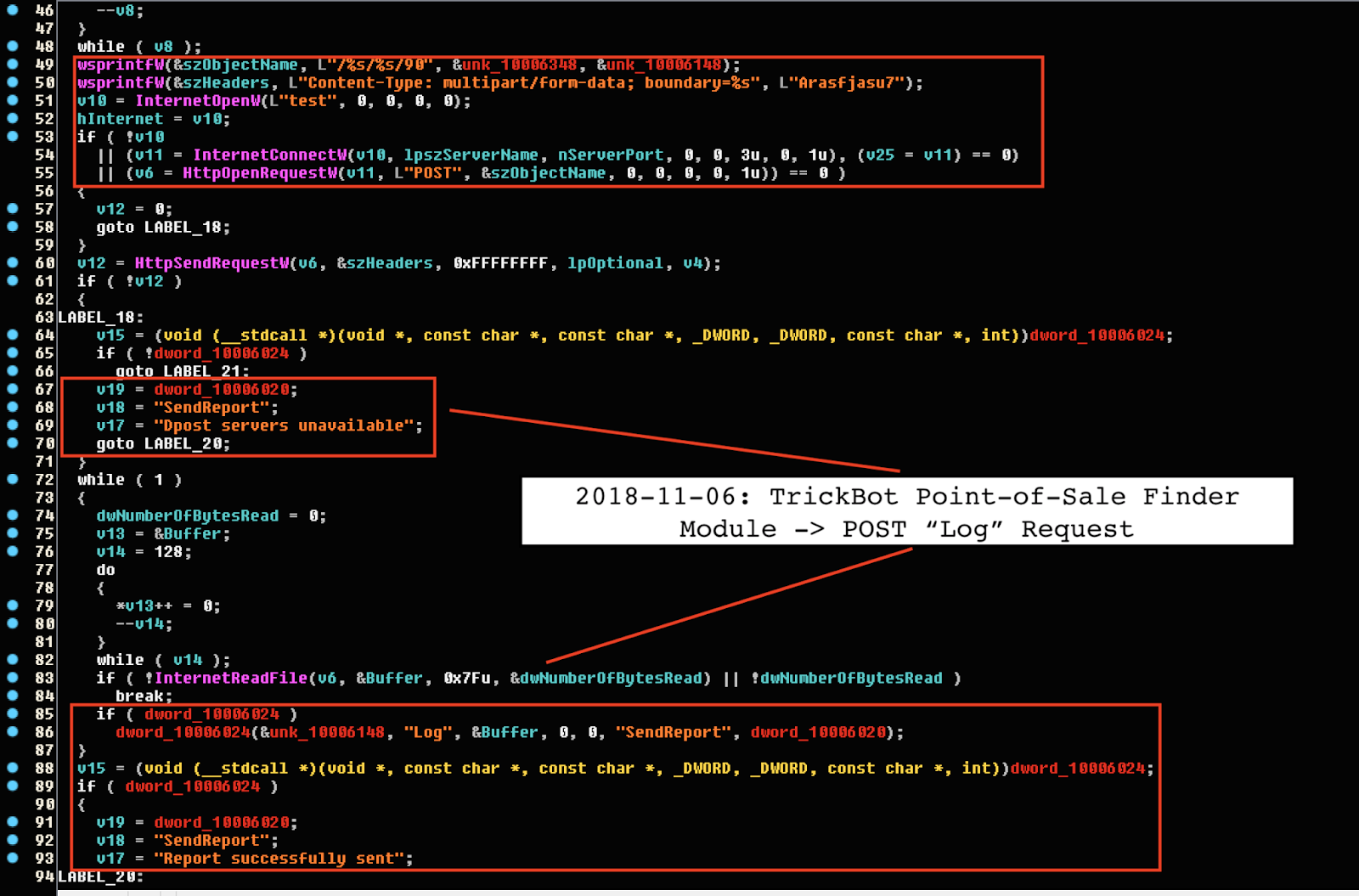

V.  TrickBot Point-of-Sale Finder Module POST Command
Once the information is harvested, the “Log” file with the information would be posted to the TrickBot to “Dpost” servers via “/%s/%s/90” command.
Part of the export “Control” function, the module forms and communicates to the next-layer network via the module network path ending in …/<GROUP ID>/<CLIENT ID>/90. The /90 ending is leveraged for POST requests with its content in the following three unique formats:
A. Content-Disposition: form-data; name="proclist"
B. Content-Disposition: form-data; name="sysinfo"
C. Content-Type: multipart/form-data; boundary=Arasfjasu7
The unique value “Arasfjasu7” appears to be a marker/separator for the LDAP query collection upload to split the harvested information.
IV. Yara Signature
import "pe"

rule crime_win32_trickbot_psfin32_dll {
   meta:
      author = “@VK_Intel”
      reference = “Detects TrickBot Point-of-Sale Finder Module”
      date = “2018-11-07”
      hash1 = “f82d0b87a38792e4572b15fab574c7bf95491bf7c073124530f05cc704c1ee96”
   strings:
      $s0 = “(&(objectCategory=computer)(userAccountControl:1.2.840.113556.1.4.803:=8192))” fullword wide
      $s1 = “Dpost servers unavailable” fullword ascii
      $s2 = “USERS:” fullword wide
      $s3 = “POS” fullword wide
      $s4 = “/%s/%s/90” fullword wide
      $s5 = “DOMAIN GC” fullword wide
      $s6 = “MICROS” fullword wide
      $s7 = “(&(objectCategory=person)(sAMAccountName=%s))” fullword wide

 $ldap_gc_pos_queryportion = { 85 f6 0f ?? ?? ?? ?? ?? 8b ?? ?? 8d ?? ?? ?? ?? ?? 6a 04 c7 ?? ?? ?? ?? ?? ?? ?? ?? ?? c7 ?? ?? ?? ?? ?? ?? ?? ?? ?? c7 ?? ?? ?? ?? ?? ?? ?? ?? ?? c7 ?? ?? ?? ?? ?? ?? ?? ?? ?? c7 ?? ?? ?? ?? ?? ?? ?? ?? ?? c7 ?? ?? ?? ?? ?? ?? ?? ?? ?? c7 ?? ?? ?? ?? ?? ?? ?? ?? ?? c7 ?? ?? ?? ?? ?? ?? ?? ?? ?? c7 ?? ?? ?? ?? ?? ?? ?? ?? ?? c7 ?? ?? ?? ?? ?? ?? ?? ?? ?? c7 ?? ?? ?? ?? ?? ?? ?? ?? ?? c7 ?? ?? ?? ?? ?? ?? ?? ?? ?? 8b ?? 52 50 ff ?? ?? 85 c0 0f ?? ?? ?? ?? ?? 68 84 45 00 10 57 e8 ?? ?? ?? ?? 68 a0 45 00 10 57 e8 ?? ?? ?? ?? 68 24 46 00 10 57 e8 ?? ?? ?? ?? ba 40 46 00 10 b9 e0 44 00 10 e8 ?? ?? ?? ?? 50 68 4c 46 00 10 57 e8 ?? ?? ?? ??}

   condition:
      ( uint16(0) == 0x5a4d and
         filesize < 50KB and
         pe.imphash() == “13c48c2a1eaa564e28ee00ed7cd0fc0f” and pe.exports(“Control”) and pe.exports(“Release”) and
         ( all of them )
      ) or ( $ldap_gc_pos_queryportion and 5 of ($s*) )
}

Article Link: https://www.vkremez.com/2018/11/lets-learn-introducing-latest-trickbot.html
